- 規格型號：63652156
- 頻率：8M
- 尺寸：3225MM
- 產品描述：X3S008000FA1H-X,加高晶振,HSX321S無源諧振器,采用微型封裝設計,體積小巧,可輕松集成到手機,智能手環,無線傳感器等空間有限的設備中,且無需額外電源供電,能顯著降低設備的整體功耗,延長續航時間.

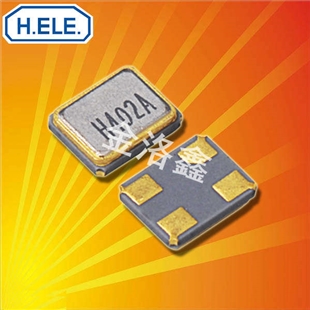

X3S008000FA1H-X,加高晶振,HSX321S無源諧振器
.png)
.png)

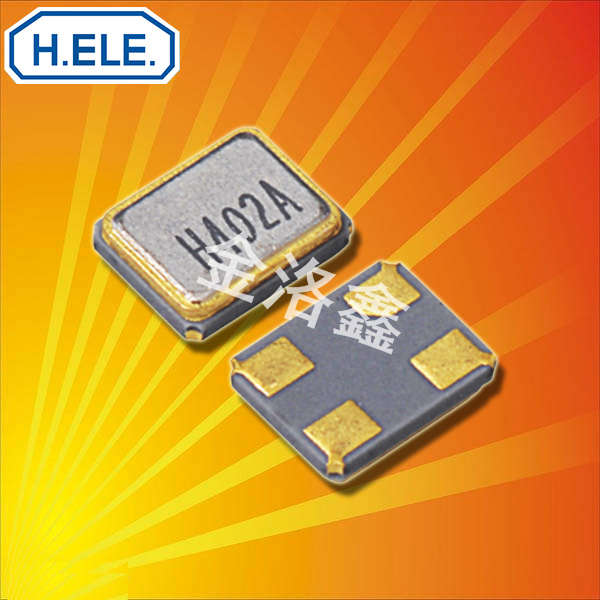

X3S008000FA1H-X,加高晶振,HSX321S無源諧振器
X3S008000FA1H-X是一款專為高精度電子設備設計的加高晶振,其核心頻率精準鎖定在8.000MHz,能為電路提供穩定可靠的時鐘信號.該晶振采用加高結構設計,在保證小型化封裝優勢的同時,有效提升了信號傳輸?shù)姆€(wěn)定性與抗干擾能力,適配多種對安裝空間有特定要求的場景.此外,它具備出色的溫度穩定性,在較寬的溫度范圍內(通常為-40℃至85℃)可保持頻率偏差極小,廣泛應用于通信設備,工業控制模塊等對時鐘精度要求嚴苛的領域,為設備的高效運行提供堅實的頻率支撐.
.png)
.png)

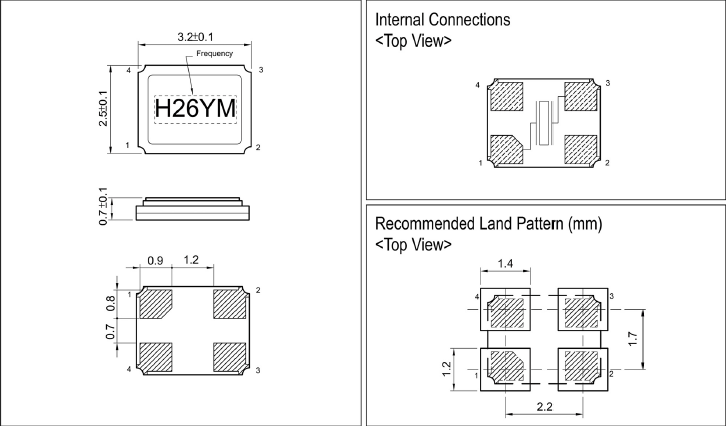

X3S008000FA1H-X,加高晶振,HSX321S無源諧振器
| 原廠型號 Originalmodel： | X3S008000FA1H-X | 品牌brand： | 加高 |
| 品牌brand： | 加高 | ESR（等效串聯電阻）Resistance) | - |
| 型號名稱 Modelname： | HSX321S | 溫度OperatingTemperature | -40+85 |
| Type系列： | MHz Crystal | 腳位Termination： | 4pad |
| 頻率 frequency： | 8MHz | 封裝類型PackageType： | 4-SMD |
| FrequencyStability頻率穩定度 | - | 高度PackageHeight： | - |
| frequencytolerance頻率容差 | ±50PPm | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 10 pF | 包裝Packaging： | TapeandReel |
| Size/Dimension尺寸 | 3225無源晶振 | 安裝方式MountingStyle： | SurfaceMount |
.png)
.png)
X3S008000FA1H-X,加高晶振,HSX321S無源諧振器
.png)
.png)
X3S008000FA1H-X,加高晶振,HSX321S無源諧振器
| X3S027000BA1H-U | HELE加高晶振 | HSX321S | MHz Crystal | 27 MHz | ±10ppm | ±10ppm | 10pF |
| X3S024000B91H-HS | HELE加高晶振 | HSX321S | MHz Crystal | 24 MHz | ±15ppm | ±10ppm | 9pF |
| X3S027120BA1H-X | HELE加高晶振 | HSX321S | MHz Crystal | 27.12 MHz | ±20ppm | ±10ppm | 10pF |
| X3S032000BC1HA-CHPZ | HELE加高晶振 | HSX321S | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 12pF |
| X3S016000DI1H-HW | HELE加高晶振 | HSX321S | MHz Crystal | 16 MHz | ±20ppm | ±20ppm | 18pF |
| X3S012000FI1H-HV | HELE加高晶振 | HSX321S | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 18pF |
| X3S025000D81H-HU | HELE加高晶振 | HSX321S | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 8pF |
| X3S026000B91H-NZ | HELE加高晶振 | HSX321S | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 9pF |
| X2B026000M81H-HS | HELE加高晶振 | HSX221SA | MHz Crystal | 26 MHz | ±15ppm | ±7ppm | 8pF |
| X2B016000BA1H-U | HELE加高晶振 | HSX221SA | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 10pF |
| X2B012000BC1H-U | HELE加高晶振 | HSX221SA | MHz Crystal | 12 MHz | ±20ppm | ±10ppm | 12pF |
| X2B040000BC1H-DHZ | HELE加高晶振 | HSX221SA | MHz Crystal | 40 MHz | ±10ppm | ±10ppm | 12pF |
| X2C025000DZ1H-U | HELE加高晶振 | HSX211S | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 6pF |
| X2C032000BA1H-HZ | HELE加高晶振 | HSX211S | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 10pF |
| X2C024000DZ1H-HU | HELE加高晶振 | HSX211S | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 6pF |
| X2C016000B81H-R | HELE加高晶振 | HSX211S | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 8pF |
| X2C026000BC1H-Z | HELE加高晶振 | HSX211S | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 12pF |
| X1C032000B81H-HR | HELE加高晶振 | HSX111S | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF |
| X1C024000B81H-HV | HELE加高晶振 | HSX111S | MHz Crystal | 24 MHz | ±30ppm | ±10ppm | 8pF |
| X2C048000L71HH-CEHZ | HELE加高晶振 | HSX211S | MHz Crystal | 48 MHz | ±14ppm | ±8ppm | 11.1pF |
| X2R026000BZ1HAZ-DHPZ | HELE加高晶振 | HSX221SR | MHz Crystal | 26 MHz | - | ±10ppm | 7pF |
| X1R038400B81HA-CEHPZ | HELE加高晶振 | HSX111SR | MHz Crystal | 38.4 MHz | ±10ppm | - | 8pF |
| X2U026000B81HBZ-DHPZ | HELE加高晶振 | HSX211SR | MHz Crystal | 26 MHz | - | ±10ppm | 8pF |
| X2R026000B91HZ-DEHPZ | HELE加高晶振 | HSX221SR | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 9pF |
| X2R019200BZ1H-CHZ | HELE加高晶振 | HSX221SR | MHz Crystal | 19.2 MHz | - | ±10ppm | 7pF |
| X2U019200BZ1H-CEHQZ | HELE加高晶振 | HSX211SR | MHz Crystal | 19.2 MHz | - | ±10ppm | 7pF |
| X2U038400B81H-EPQZ | HELE加高晶振 | HSX211SR | MHz Crystal | 38.4 MHz | - | ±10ppm | 8pF |
| X1R052000B81HZ-DEHPZ | HELE加高晶振 | HSX111SR | MHz Crystal | 52 MHz | ±10ppm | ±10ppm | 8pF |
| X12A040000BZ1H-HZ | HELE加高晶振 | HSX1210A | MHz Crystal | 40 MHz | ±10ppm | ±12ppm | 6pF |
| X12A032000B81H-HZ | HELE加高晶振 | HSX1210A | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF |
| SSW048000I3CHE-T | HELE加高晶振 | HSO321S | XO (Standard) | 48 MHz | 3.3V | ±50ppm | - |
| SSW050000I3CHE-T | HELE加高晶振 | HSO321S | XO (Standard) | 50 MHz | 3.3V | ±50ppm | - |
| SSW008000I3CHE-T | HELE加高晶振 | HSO321S | XO (Standard) | 8 MHz | 3.3V | ±50ppm | - |
| SSW024576F3CHC-T | HELE加高晶振 | HSO321S | XO (Standard) | 24.576 MHz | 3.3V | ±30ppm | - |
| SSW010000I3CHE-T | HELE加高晶振 | HSO321S | XO (Standard) | 10 MHz | 3.3V | ±50ppm | - |
| SSW025000I3CHE-ST7R2 | HELE加高晶振 | HSO321S | XO (Standard) | 25 MHz | 3.3V | ±50ppm | - |
| S2H048000F3CHC-T | HELE加高晶振 | HSO221S | XO (Standard) | 48 MHz | 3.3V | ±30ppm | - |
| TC2S026000DCCHE-T | HELE加高晶振 | HSB221S | TCXO | 26 MHz | 2.8V | ±500ppb | - |
| X3S026000B91H-NZ | HELE加高晶振 | HSX321S | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 9pF |
| X2B026000M81H-HS | HELE加高晶振 | HSX221SA | MHz Crystal | 26 MHz | ±15ppm | ±7ppm | 8pF |
| X2B016000BA1H-U | HELE加高晶振 | HSX221SA | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 10pF |
| X2B012000BC1H-U | HELE加高晶振 | HSX221SA | MHz Crystal | 12 MHz | ±20ppm | ±10ppm | 12pF |
| X2B040000BC1H-DHZ | HELE加高晶振 | HSX221SA | MHz Crystal | 40 MHz | ±10ppm | ±10ppm | 12pF |
| X2C025000DZ1H-U | HELE加高晶振 | HSX211S | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 6pF |
| X2C032000BA1H-HZ | HELE加高晶振 | HSX211S | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 10pF |
| X2C024000DZ1H-HU | HELE加高晶振 | HSX211S | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 6pF |
| X2C016000B81H-R | HELE加高晶振 | HSX211S | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 8pF |
| X2C026000BC1H-Z | HELE加高晶振 | HSX211S | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 12pF |
| X1C032000B81H-HR | HELE加高晶振 | HSX111S | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF |
| X1C024000B81H-HV | HELE加高晶振 | HSX111S | MHz Crystal | 24 MHz | ±30ppm | ±10ppm | 8pF |
| X2C048000L71HH-CEHZ | HELE加高晶振 | HSX211S | MHz Crystal | 48 MHz | ±14ppm | ±8ppm | 11.1pF |
| X2R026000BZ1HAZ-DHPZ | HELE加高晶振 | HSX221SR | MHz Crystal | 26 MHz | - | ±10ppm | 7pF |
| X1R038400B81HA-CEHPZ | HELE加高晶振 | HSX111SR | MHz Crystal | 38.4 MHz | ±10ppm | - | 8pF |
| X2U026000B81HBZ-DHPZ | HELE加高晶振 | HSX211SR | MHz Crystal | 26 MHz | - | ±10ppm | 8pF |
| X3S027000BA1H-U | HELE加高晶振 | HSX321S | MHz Crystal | 27 MHz | ±10ppm | ±10ppm | 10pF |
| X3S024000B91H-HS | HELE加高晶振 | HSX321S | MHz Crystal | 24 MHz | ±15ppm | ±10ppm | 9pF |
| X3S027120BA1H-X | HELE加高晶振 | HSX321S | MHz Crystal | 27.12 MHz | ±20ppm | ±10ppm | 10pF |
| X3S032000BC1HA-CHPZ | HELE加高晶振 | HSX321S | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 12pF |
| X3S016000DI1H-HW | HELE加高晶振 | HSX321S | MHz Crystal | 16 MHz | ±20ppm | ±20ppm | 18pF |
| X3S012000FI1H-HV | HELE加高晶振 | HSX321S | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 18pF |
